Time Audio

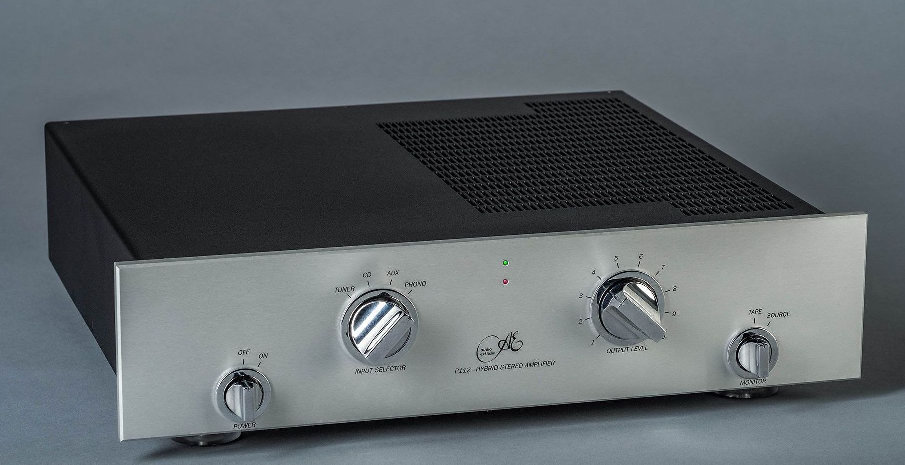

Audio Exklusiv P112 Stereo Hybrid Integrated Amplifier
Specifications:
Output power (8/4 Ohm):
130 / 210 W
Frequency response:
10 Hz - 85 kHz (-3dB)
Noise: -90 dBu
THD+N (1 W/8Ohm): 0,277 %
IMD: 0,44 %
Channel separation (10 kHz/1 V):
69 dB
Input sensitivity /
output level max. 8 Ohm):
325 mV
Input impedance: 50 kOhm
Power consumption (w/o Load):
125 Watt
Dimensions:
480 (W) x 475 (D) x 125 (H) mm
Weight: 23 kg
Output power (8/4 Ohm):
130 / 210 W
Frequency response:
10 Hz - 85 kHz (-3dB)
Noise: -90 dBu
THD+N (1 W/8Ohm): 0,277 %
IMD: 0,44 %
Channel separation (10 kHz/1 V):
69 dB
Input sensitivity /
output level max. 8 Ohm):
325 mV
Input impedance: 50 kOhm
Power consumption (w/o Load):
125 Watt
Dimensions:
480 (W) x 475 (D) x 125 (H) mm
Weight: 23 kg

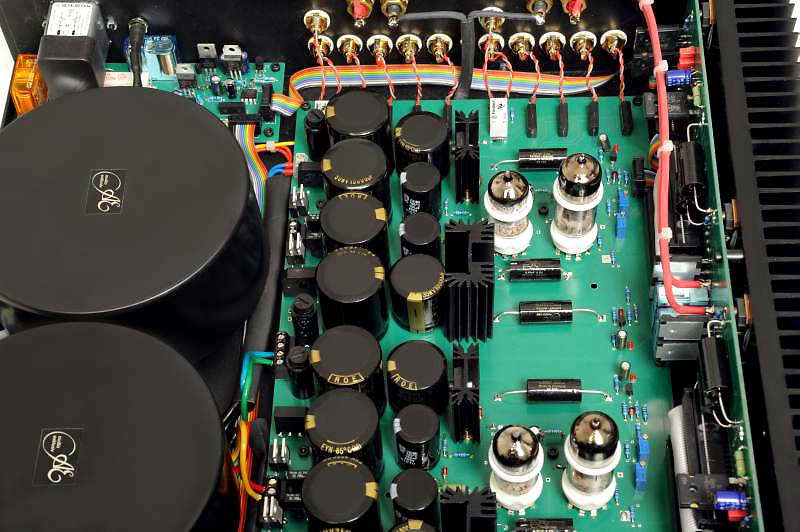

The P112 is a stereo hybrid integrated amplifier. Each channel uses one E88CC and one 6N6 for the amplifier/driver section as well as special power transistors for the output. The valves (tubes) are specially selected in order to reach the best possible channel balance, noise and distortion values. Should you experiment with other tubes please notice that, due to the missing selection, the sound characteristics can be modified.
The P112 is as the P12 built up completely channel separated (dual mono). The P112 even shows this concept up to the two 500 W transformers. Each channel works absolutely self-governed and is consequently not influenced by the other. The double transformer dimensioning ensures that each channel shows a continual and ideal power supply even during great energy consuming impulses. Furthermore the P112 has an additional pair of output transistors which lead to lower impedances and a considerable improvement of power and stability.
The power supply is built up with an RC-filter. In combination with a high quality line filter, most of the line noise can be eliminated – the audio circuit works under the best possible conditions.
Switching of the inputs is effected by means of gas-filled reed relays. The only remaining mechanical contact is the volume potentiometer. We use the best potentiometers currently available - those from TKD.
Components have been determined separately in cooperation with long listening tests. Non-inductive resistors with only lowest tolerances, MKP, mica and oiled paper capacitors and high quality internal wiring are only a few examples of the final selection.
Even here our special patented measures for resonance elimination have been applied. They considerably reduce artificial artifacts and clearly improve the demonstration of finest detail resolution and room information
Thanks to all measures we reach a best possible stability and an ideal channel separation. The result is an extremely wide-ranging, airy, excellent structured, but nevertheless emotional sound pattern partnered with authority and solidity.
The P112 is as the P12 built up completely channel separated (dual mono). The P112 even shows this concept up to the two 500 W transformers. Each channel works absolutely self-governed and is consequently not influenced by the other. The double transformer dimensioning ensures that each channel shows a continual and ideal power supply even during great energy consuming impulses. Furthermore the P112 has an additional pair of output transistors which lead to lower impedances and a considerable improvement of power and stability.
The power supply is built up with an RC-filter. In combination with a high quality line filter, most of the line noise can be eliminated – the audio circuit works under the best possible conditions.
Switching of the inputs is effected by means of gas-filled reed relays. The only remaining mechanical contact is the volume potentiometer. We use the best potentiometers currently available - those from TKD.
Components have been determined separately in cooperation with long listening tests. Non-inductive resistors with only lowest tolerances, MKP, mica and oiled paper capacitors and high quality internal wiring are only a few examples of the final selection.
Even here our special patented measures for resonance elimination have been applied. They considerably reduce artificial artifacts and clearly improve the demonstration of finest detail resolution and room information
Thanks to all measures we reach a best possible stability and an ideal channel separation. The result is an extremely wide-ranging, airy, excellent structured, but nevertheless emotional sound pattern partnered with authority and solidity.
£5075.00
